10.1” Stainless Panel PC (TSP-4845-10)

ISO Class 3-8Stainless SteelWiFiChemical Resistance

Food Processing: The TSP-4845 series, with its IP66/IP69K compliant stainless steel front bezel, is an ideal computing solution for the food processing industry. This Stainless Panel PC provides a reliable and hygienic platform for critical applications in food processing. Its design ensures protection against water, dust, and high-pressure wash downs, meeting the stringent requirements of the industry for maintaining cleanliness and hygiene.

Manufacturing Operations: The TSP-4845 series serves as a rugged computing solution for manufacturing operations. This Stainless Panel PC, featuring an Intel Celeron J6412 processor, ensures efficient performance and multitasking in diverse manufacturing environments.

Clean Room Environments: Specifically designed for sterile environments, the TSP-4845 series is well-suited for use in clean room applications. This panel PC provides a reliable and hygienic computing solution for critical operations in clean room environments. The IP66/IP69K compliant stainless steel front bezel ensures protection against water, dust, and high-pressure wash downs, meeting the strict requirements of clean room standards.



Key Highlights

  • 10.1” Resistive or PCAP Touchscreen
  • Intel Celeron J6412 Processor
  • Windows 11 Operating System
  • IP66/IP69K Stainless Steel Front Bezel
  • Fanless and Lightweight Design



Why Buy from Teguar

  • ✆ Dedicated, Quick Response Customer Support Experts
  • ✓ 30-Day Worry Free Return
  • Teguar Computers come standard with a 24 month warranty – up to 5 years extension of our product warranty at the time of sale.
Add to Compare
10.1” Stainless Panel PC (TSP-4845-10)
10.1” Stainless Panel PC (TSP-4845-10)
Privacy(Required)

Description

The 10” Stainless Panel PC strikes a balance between portability and functionality, catering to diverse industrial needs. Equipped with Windows 11 compatibility and Celeron J6412 CPU, it guarantees smooth operation. Its IP66/IP69K compliant stainless steel front bezel safeguards against water and harsh chemicals, making it suitable for food & beverage and pharmaceutical industrials. The aluminum back enclosure ensures a lightweight design and convenient access to inputs and outputs. With an optional smart battery, it becomes a reliable and efficient computer solution for your industrial environment.



Primary Components

Processor Family Intel Celeron Elkhart Lake
Processor Model Celeron J6412 Quad
Processor Speed 2.0 GHz
Memory Type 1x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage Type 1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage Support 128GB-1TB

Display

Screen Size 10.1″
Resolution 1280 x 800 (WXGA)
Screen Ratio 16:10
Brightness Optional 1000 nit High Brightness, 450 nits

Touch Screen

Touch Screen Projected Capacitive, Resistive

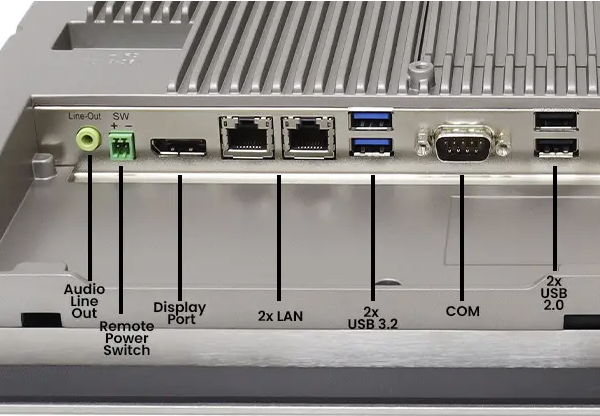

External I/O Ports

USB 2x USB 2.0, 2x USB 3.2
Serial / Com 1x COM
Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232(COM1)
Ethernet / LAN 2x RJ45 2.5 GbE LAN
Video Outputs 1x DisplayPort
Audio Ports 1x Audio Line-Out
Power Input Port DC-in Jack (Phoenix Type)

Power

Input Voltage Range 9-36V DC
Standard Power Adapter Optional 12V 5A AC/DC Adapter

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 11

Expansion Slots

Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature 0°C – 50°C (32°F – 122°F), -20°C – 60°C (Optional -4°F – 140°F)
Storage Temperature -30°C – 70°C (-22°F – 158°F)
Cooling Solution Passive – Fanless
Humidity Range 10% – 95% Non-condensing
Storage Humidity 10% – 90% Non-condensing

Enclosure

Material Aluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating IP66 Front Bezel, IP69K Front Bezel
Color Silver, Stainless Steel
Mounting Options Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi Optional 802.11 ac + Bluetooth with External Antennas
Bluetooth Optional Bluetooth 4.0

Weight / Dimensions

Weight 2.5 kg (5.5 lbs)
Dimensions 296 x 200 x 47 mm (11.7 x 7.9 x 1.9 in)

Certification

Certifications CE, EN 1672-2 Complaint (PCAP Touchscreen Only), FCC Class A

Warranty

Warranty Up to 5 Years
