10″ Heavy Duty Tablet (TRT-5380-10)

ISO Class 3-8

Outdoor Asset Tracking: With their ruggedness and connectivity options, the TRT-5380 Series tablets are ideal for outdoor asset tracking, providing real-time location monitoring, data collection, and efficient management of assets in industries such as logistics, construction, and utilities.

Manufacturing Facility Operations: The TRT-5380 Series tablets, designed for use in humid or wet manufacturing facilities, offer a reliable tool for process monitoring, quality control, and inventory management, ensuring smooth operations and productivity.

Field Service Management: Equipped with a variety of I/Os and connectivity options, the TRT-5380 Series tablets are suitable for field service management, enabling technicians to access manuals, troubleshoot issues, and communicate with support teams while on the move.



Key Highlights

  • 10.1″ Gorilla Glass Touchscreen
  • Intel Jasper Lake Quad-Core CPU
  • Wi-Fi , Bluetooth, GPS, and optional NFC
  • MIL-STD-810G Shock and Drop Resistant
  • USB Type C, USB Type A, RS232 COM port
  • Pogo Pin Expansion for Docking stations



Why Buy from Teguar

  • ✆ Dedicated, Quick Response Customer Support Experts
  • ✓ 30-Day Worry Free Return
  • Teguar Computers come standard with a 24 month warranty – up to 5 years extension of our product warranty at the time of sale.
Add to Compare
10" Heavy Duty Tablet (TRT-5380-10)
10″ Heavy Duty Tablet (TRT-5380-10)
Privacy(Required)

Description

The TRT-5380-10 is a 10″ fanless rugged tablet with an Intel Jasper Lake Quad-Core CPU. This heavy duty tablet is IP65 waterproof and dustproof rated, as well as complying with MIL-STD-810G to protect from shocks, vibration, and drops. The TRT-5380-10 can withstand being handled by multiple users and has a removable battery that lasts for up to 8 hours. It has an optional 1D/2D barcode scanner and fingerprint reader, as well as built-in WiFi, Bluetooth, GPS, and NFC, as well as two cameras: 5MP on the front, 8MP rear. The TRT-5380-10 will be working reliably in your facility for years to come.



Primary Components

Processor Family Intel Jasper Lake Quad-Core
Processor Model N5100
Processor Speed Up to 2.8 GHz, 1.1 GHz
Memory Type Onboard DDR4
Memory Support 8GB
Storage Type Onboard eMMC Flash
Storage Support 128GB

Display

Screen Size 10.1″
Resolution 1920 x 1200 (WUXGA)
Screen Ratio 16:10
Brightness 400 nits

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)
Hardness 7H
Glass Type Gorilla Glass

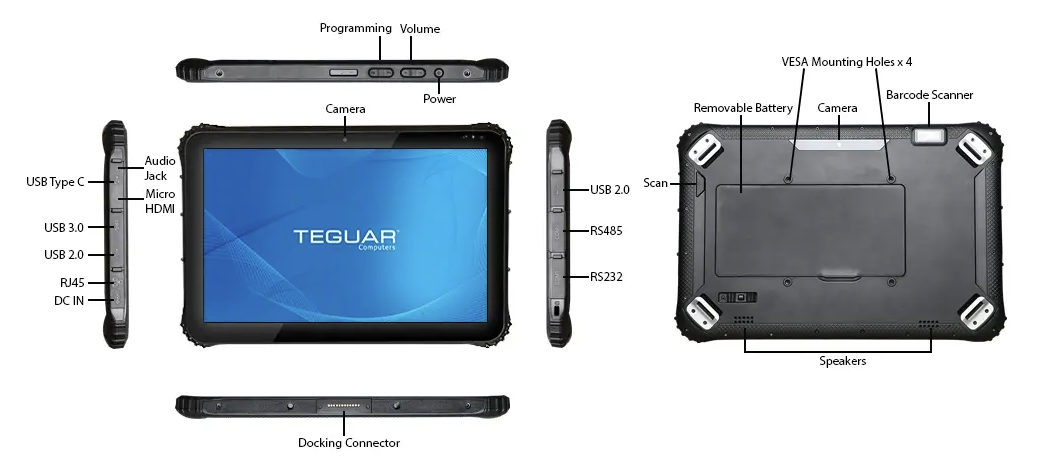

External I/O Ports

USB 1x USB 3.0, 1x USB 3.0 type C
Serial / Com 1x COM
Serial Protocol Detail 1x RS-232(2wire)
Ethernet / LAN 1x RJ45 GbE LAN
Video Outputs 1x Mini HDMI
Audio Ports 1x 3.5mm Headphone Jack
Power Input Port 3.5mm DC-in Jack

Power

Input Voltage Range 19V DC
Standard Power Adapter 19V DC 3.42A 4.0mm with US AC Power Cord

Battery

Battery Type Removable 7.4V/5000mAh Battery
Battery Operating Time 8hrs

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Video Card Support Intel® HD Graphics 515
SD card 1x Micro SD Slot
Other Pogo Pin Expansion

Multimedia

Speakers 1x 1W Speaker
Camera Front: 5MP, Rear: 8MP
Microphone Built-in Microphone

Thermal & Environmental

Operating Temperature -20°C – 60°C (-4°F – 140°F)
Storage Temperature -30°C – 70°C (-22°F – 158°F)
Cooling Solution Passive – Fanless
Humidity Range 95% Non-condensing

Enclosure

Material Double Injection
IP Rating IP65
Color Black
Led Indicator Light Power
Control Buttons Audio Down, Audio Up, Home, Power Button, Scanner
Programmable Function Buttons 2x Programmable Function Keys
Shock Rating MIL-STD-810G
Drop Rating 4ft Drop Protection
Mounting Options Desktop Stand, Forklift Mount, Vehicle Mount
Approved Cleaning Solutions Acetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat

Peripherals & Wireless Connectivity

WiFi Wi-Fi (a/b/g/n/ac)
Bluetooth Bluetooth 5.1
GPS yes
Mobile Network 4G LTE Project Based
Mobile Network 5G Project Based
Sim Card 1x Micro SIM Card Slot
Barcode Scanner Optional 1D/2D Barcode Scanner
RFID Optional RFID Scanner (NFC 13.56 Mhz ISO/IEC 14443A/14443B/15693/18092/MiFare)
Peripheral Other Cigarette adapter; Digitizer Pen; Handstrap; Desktop Dock; Vehicle Dock; Forklift Dock; Shoulder Strap; Back Strap; Mounts
Sensors Accelerometer, Light Sensor

Weight / Dimensions

Weight 1.01 kg (2.2 lbs)
Dimensions 280 x 187 x 26.6 mm (11.0 x 7.4 x 1.0 in)

Certification

Certifications ANATEL (Brazil), BIS (India), C-tick (Australia), CCC (China), CE, FCC, IC (Canada), KC (South Korea), NOM (Mexico), TELEC (Japan), UKCA (United Kingdom)

Warranty

Warranty Up to 3 Years
