Description

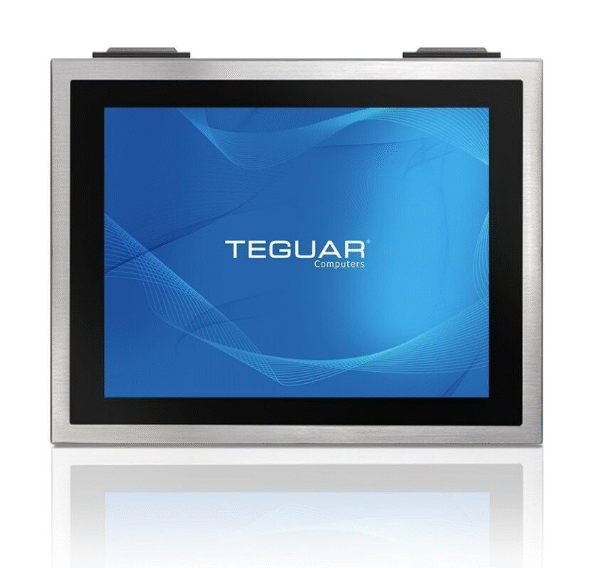

The 19″ Cable Gland Computer stands as a rugged computing solution, boasting an IP69K waterproof rating to tackle the rigorous cleaning procedures essential in food and meat processing environments. Its integrated cable gland, accommodating up to five I/O cables, facilitates efficient cable management and ensures a sealed design. Running on Windows 11, powered by the dependable Celeron J6412 CPU, this computer offers seamless performance. Its WiFi 6 capabilities enable high-speed and reliable wireless connectivity, enhancing productivity in demanding industrial settings. With a focus on durability, hygiene, and robust processing, the 19″ Cable Gland Computer proves to be a crucial asset in these industries.
Primary Components
| Processor Family | Intel Celeron Elkhart Lake |
| Processor Model | Celeron J6412 |
| Processor Speed | 2.0 GHz, 2.6 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB |
| Storage Type | 1x 2.5″ SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 SATA3 2242 Slot |
| Storage Support | M.2 and 2.5″: 128GB – 1TB |
Display
| Screen Size | 19 |
| Resolution | 1280 x 1024 (SXGA) |
| Screen Ratio | 5:4 |
| Brightness | 350 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch), 5 Wire Resistive |
| Hardness | Resistive: 3H, P-cap: 7H |

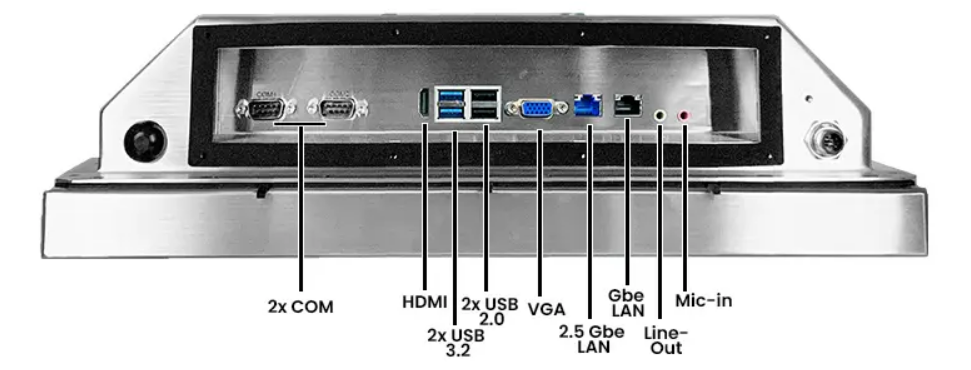

External I/O Ports
| USB | 2x USB 2.0, 2x USB 3.2 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | RS-232/422/485 |
| Ethernet / LAN | 1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN |
| Video Outputs | 1x HDMI 2.0b, 1x VGA |
| Audio Ports | 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack |
| Power Input Port | M12 type 5-PIN DC-in |
Power
| Input Voltage Range | 12-28V DC |
| Standard Power Adapter | 100~277Vac /47~63 Hz/ 24Vdc, 120W, IP68 |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility
| Security Hardware | fTPM 2.0, Optional TPM 2.0 |
Multimedia
| Speakers | Optional Speaker |
Thermal & Environmental
| Operating Temperature | 0°C – 40°C – 0°C – 50°C (32°F – 104°F (With HDD), 32°F – 122°F (With SSD)) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 0% – 90% Non-condensing |
| Storage Humidity | 10% – 90% Non-condensing |
Enclosure
| Material | Stainless Steel |
| IP Rating | IP66, IP69K |
| Color | Stainless Steel |
| Control Buttons | Power Button |
| Mounting Options | VESA 100 Mount, Wall Mount, Yoke Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Dual band with Flat Robust Antennas |
| Bluetooth | Optional Bluetooth 5.3 |
| Barcode Scanner | Optional 1D/2D with Device Box |
Weight / Dimensions
| Weight | 11.5 kg (25.4 lbs) |
| Dimensions | 458 x 64 x 386 mm (18.0 x 2.5 x 15.2 in) |
Warranty
| Warranty | Up to 5 Years |
