Key Highlights
- Intel Jasper Lake Quad-Core processor
- 7H rated anti-scratch glass
- Multiple I/Os including 1x USB 3.0, 1x Type-C USB, 1x Mini HDMI
- Fanless operation
- Full IP65 rated protection
12" Rugged Tablet with Docking Station (TRT-7080-12)
8" Rugged Tablet Computer (TRT-A5780-08)
€689.00 – €752.60Price range: €689.00 through €752.60
8″ Durable Tablet (TRT-4680-08)
Price range: €984.74 through €1,037.74
Manufacturing Floor Operations: The TRT-4680-08 rugged tablet, with its MIL-STD-810 rating, powerful processor, and rugged design, is well-suited for use on the manufacturing floor, providing workers with reliable access to real-time data, instructions, and process management tools.
Construction Site Management: With its durability, IP65 enclosure, and anti-scratch glass, the TRT-4680-08 tablet is an excellent choice for construction site management, allowing supervisors to access blueprints, schedules, and communicate with teams in challenging environments.
Vehicle and Forklift Applications: The TRT-4680-08 tablet’s ruggedness and connectivity options make it suitable for use in vehicles and forklifts, enabling drivers and operators to access GPS navigation, inventory management systems, and communicate while on the move. (Industry: Transportation, Logistics)
Why Buy from Teguar
- ✆ Dedicated, Quick Response Customer Support Experts
- ✓ 30-Day Worry Free Return
- Teguar Tablets come standard with a 1 year warranty – additional years extension of our product warranty at the time of sale.
Available Options
| Thumbnail | SKU | Description | Tablet Accessory | Operating System | Stock | Price | |
|---|---|---|---|---|---|---|---|
 | 2D Scanner | Windows | In Stock | €1,037.74 | |||
| Without 2D Scanner | Windows | In Stock | €984.74 |
Description
The TRT-4680-08 is a fanless rugged tablet with an Intel Jasper Lake Quad-core processor. This industrial tablet is IP65 rated, making it completely dustproof and protected from water sprays and splashes. It is also MIL-STD-810G certified, meaning it can survive drops and hard vibrations. The touchscreen is a 5-point multi-touch projected capacitive and is made with 7H rated anti-scratch glass for high crack protection. The TRT-4680-08 is ideal to use in any area of your facility and can even be used outdoors due to the wide range of temperature it can sustain. At 8”, this device is easy to carry. It also has built in WIFI and Bluetooth, allowing it to be carried around the shop floor or out in the field without fear of losing connection or work. The TRT-4680-08 will make your operations convenient to oversee no matter where you place it.
Primary Components
| Processor Family | Intel Jasper Lake Quad-Core |
| Processor Model | N5100 |
| Processor Speed | Up to 2.8 GHz |
| Memory Type | Onboard DDR4 |
| Memory Support | 4GB |
| Storage Support | 32GB (Standard), up to 128GB (Optional) |
Display
| Screen Size | 8″ |
| Resolution | 1920 x 1200 (WUXGA) |
| Screen Ratio | 16:10 |
| Brightness | 550 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |

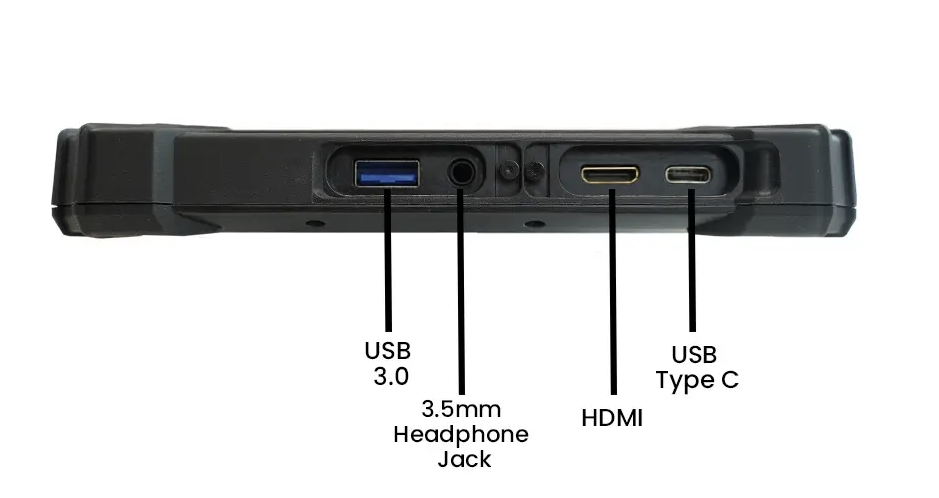

External I/O Ports
| USB | 1x USB 3.0, 1x USB 3.0 type C |
| Video Outputs | 1x Micro HDMI |
| Audio Ports | 1x 3.5mm Headphone Jack |
| Power Input Port | 3.5mm DC-in Jack |
Power
| Standard Power Adapter | AC100V~240V, 50Hz/60Hz output 19V/3.42A |
Battery
| Battery Type | Removable 7.4V/5000mAh Battery |
| Battery Operating Time | 9hrs |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
Expansion Slots
| Video Card Support | Intel HD Graphics |
| SD card | 1x Micro SD Slot |
| Other | Pogo Pin Expansion |
Multimedia
| Speakers | 2x 0.8W Speakers |
| Camera | Front: 5MP, Rear: 8MP |
| Microphone | Built-in Microphone |
Thermal & Environmental
| Operating Temperature | -20°C – 60°C (-4°F – 140°F) |
| Storage Temperature | -30°C – 70°C (-22°F – 158°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 95% Non-condensing |
Enclosure
| Material | Double Injection |
| IP Rating | IP65 |
| Color | Black |
| Shock Rating | MIL-STD-810G |
| Mounting Options | Desktop Stand, Vehicle Mount |
| Approved Cleaning Solutions | Acetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat |
Peripherals & Wireless Connectivity
| WiFi | Wi-Fi a/b/g/n/ac |
| Bluetooth | Bluetooth 4.2 |
| Mobile Network 4G LTE | Optional Onboard Quectel 4G LTE, North America, South America, EMEA, Australia/NZ |
| Barcode Scanner | Optional 1D/2D Barcode Scanner |
| RFID | Optional RFID Scanner |
| Peripheral Other | Cigarette adapter, Digitizer pen, handstrap, desktop dock, vehicle dock, shoulder strap, back strap, mounts |
| Sensors | Accelerometer, Light Sensor |
Weight / Dimensions
| Weight | 0.91 kg (2.0 lbs) |
| Dimensions | 236 x 155 x 20 mm (9.3 x 6.1 x 0.8 in) |
Warranty
| Warranty | Up to 3 Years |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Screen Type | Polymer |
| Screen Size | 8" |
| Tablet Accessory | 2D Scanner, Without 2D Scanner |
| Operating System | Windows |
