Compact portable particle monitoring

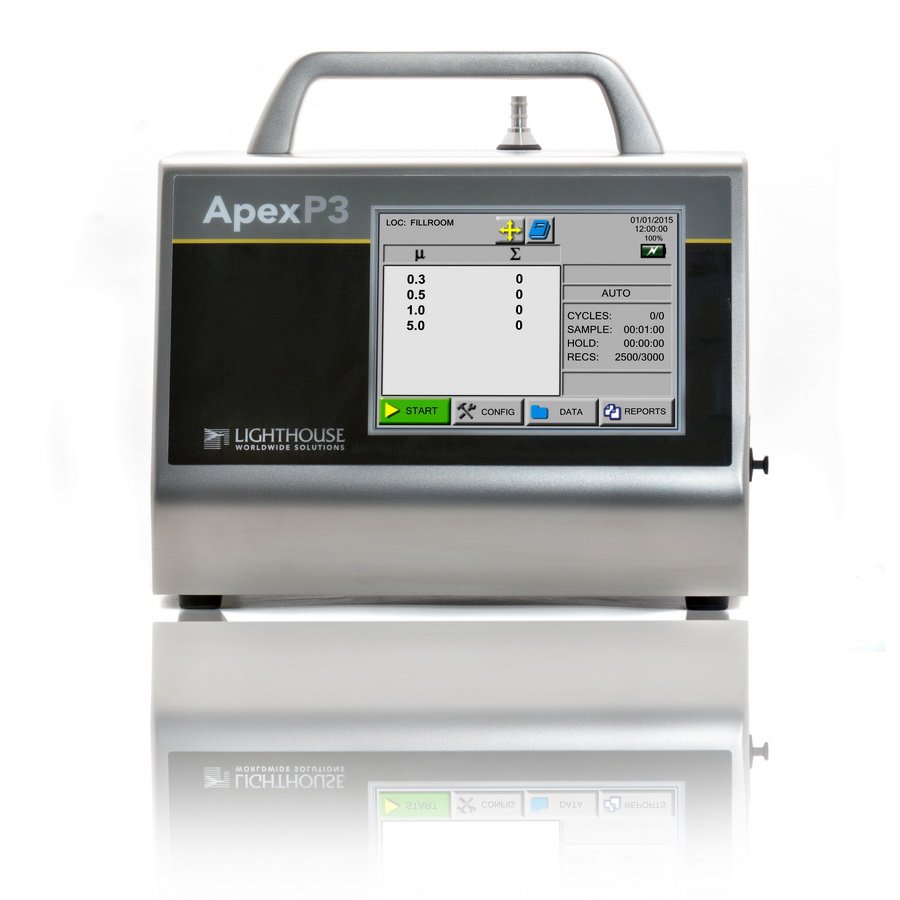

The Lighthouse ApexP3 Portable Airborne Particle Counter is designed for cleanroom and controlled environment monitoring where portability, reliability and data integrity are important.
As part of the ApexP range, the ApexP3 offers reliable airborne particle counting in a smaller, lightweight portable unit. It is suitable for routine cleanroom checks, contamination monitoring, facility monitoring support and controlled environment applications.
Easy to use and easy to carry
The ApexP3 includes a 5.7-inch colour touchscreen display, making it simple to view particle count data directly from the unit. It can store up to 3,000 records of particle count data and supports configurable sampling/report recipes, helping users manage repeat monitoring tasks more efficiently.
Built-in diagnostics and data transfer
The ApexP3 includes self-diagnostic technology to monitor the health of the laser, flow rate and particle detector, helping ensure the instrument is operating within specified tolerances.
Secure data transfer allows particle count data to be transferred via USB flash drive, computer, facility monitoring system or building automation system. The ApexP range also supports communication through RS-485 Modbus, USB and Modbus/TCP/IP for third-party software applications.
Key features
- 0.3–10.0 μm particle size range
- 1.0 CFM / 28.3 LPM flow rate
- Compact portable airborne particle counter
- 5.7-inch colour touchscreen display
- Stores up to 3,000 particle count records
- Up to 4 particle channels
- Configurable database for up to 50 recipes
- Self-diagnostics for laser, flow rate and particle detector
- Remote access via internal web server
- Secure data transfer via USB, computer, FMS or BAS
- RS-485 Modbus and Modbus/TCP/IP communication
- VHP compatibility
ApexP model comparison
| Model | Particle Size Range | Flow Rate |
|---|---|---|
| ApexP3 | 0.3–10.0 μm | 1.0 CFM / 28.3 LPM |
| ApexP5 | 0.5–10.0 μm | 1.0 CFM / 28.3 LPM |
Applications
The Lighthouse ApexP3 is suitable for:
- Cleanroom environmental monitoring
- Pharmaceutical cleanrooms
- Laboratories
- Controlled manufacturing areas
- Facility monitoring systems
- Building automation system integration
- Contamination control programme
