Precision Liquid Particle Monitoring for Critical Water Systems

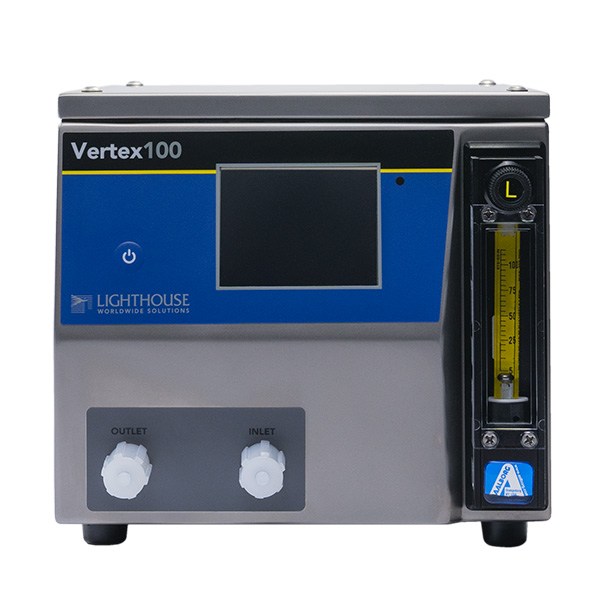

The Lighthouse Vertex100 Liquid Particle Counter delivers highly accurate particle counting for ultrapure water (UPW) systems used in semiconductor manufacturing, pharmaceutical production and other contamination-controlled environments. Designed to detect extremely small particles with outstanding reliability, the Vertex100 helps maintain process quality and regulatory compliance.

Its compact design and advanced optical technology make it suitable for both new installations and integration into existing facility monitoring systems.

Advanced Detection with Rapid Recovery

The Vertex100 combines high sensitivity with fast system recovery, allowing operators to quickly identify contamination events and return to baseline measurements. Advanced photodetector technology reduces optical noise and minimises gamma-ray interference, delivering accurate counts without the need for count subtraction.

Real-time monitoring enables immediate response to changing water quality, reducing downtime and protecting critical manufacturing processes.

Built for Continuous Monitoring

Designed for permanent installation, the Vertex100 features integrated manual flow control, industrial communications and a robust stainless steel construction. Its intuitive touchscreen interface simplifies operation while supporting seamless integration with building management and facility monitoring systems.

Key Features

• Channel sizes: 100 nm, 200 nm, 300 nm and 500 nm
• Four simultaneous particle size channels
• 100 mL/min flow rate
• Concentration limit greater than 100,000 counts/mL @10% coincidence loss
• 3.5-inch colour touchscreen display
• Integrated manual flow control
• Built-in leak detection sensor
• 316L stainless steel construction
• Ethernet, RS-485 Modbus Serial and 4–20 mA communications
• NEMA-style enclosure
• Suitable for continuous ultrapure water monitoring

Typical Applications

The Lighthouse Vertex100 is ideal for:

• Ultrapure water (UPW) systems
• Semiconductor manufacturing
• Microelectronics fabrication
• Pharmaceutical water monitoring
• Biotechnology production
• Facility monitoring systems
• Cleanroom water quality monitoring
• Critical process control
