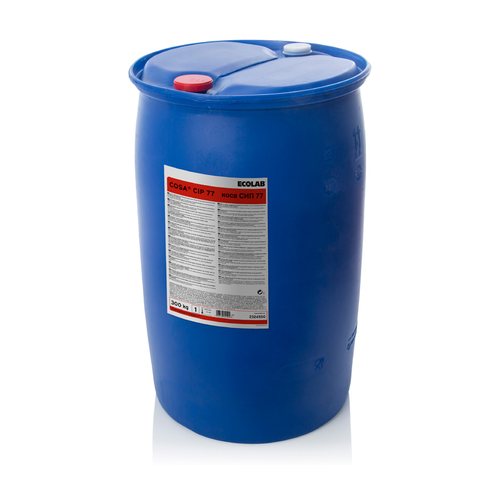

COSA CIP 77 is an inorganic acid detergent developed for CIP cleaning of pharmaceutical and cosmetic processing equipment. It is used on equipment such as homogenisers, tanks, pipelines and fermenters, with particular suitability for iron oxide red pigment residues.
Key features and benefits
- Effective acidic cleaning for mineral and pigment-related residues.
- Especially suitable for iron oxide red pigments.
- Surfactant-free, non-foaming formulation.
- Concentration can be controlled using conductivity.
- Supported by Ecolab cleaning-validation documentation and residue-analysis methods.
Applications
- Standard CIP after alkaline cleaning and an intermediate rinse: typically 0.5-2% at 60-80 C for 20-30 minutes.
- Iron oxide red pigment removal: typically 5-10% at 60-85 C for 20-30 minutes.
- General cleaning: typically 1-3% at 5-85 C, with contact time based on the level of soiling.
Technical overview
| Appearance | Clear, yellow-brown liquid |
| pH | 1.5-1.9 at 1% and 20 C in deionised water |
| Foam behaviour | Non-foaming |
| Water quality | Minimum drinking-water quality |
| Compatible metals | Austenitic CrNi steel, at least DIN 1.4301 / AISI 304 |
| Compatible plastics | PE, PP, PTFE and PVDF under the stated application conditions |
Application conditions should be confirmed for the specific equipment, soil and cleaning process. Use in accordance with the current manufacturer sell sheet, Safety Data Sheet and site validation procedures.
